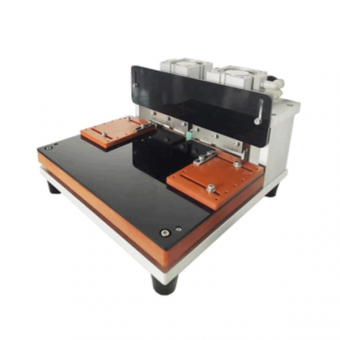

Laboratory Compact Pouch Cell Tab Cutting Cutter Machine For Battery Tab Shaping Product overview This equipment is to achieve the function of cutting the tab of large polymer, small equipment, simple operation, and stable cutting. Both positive and negative tabs are cut without short circuit.   Product characteristics 1, small and simple equipment, easy to operate, low failure rate. 2. The machine solves the problem of simultaneously cutting the positive and negative electrodes of the polymer built-in battery to avoid short circuit. 3, used for cutting the length of the positive and negative ear before the polymer built-in battery welding protection plate (including mobile phone battery, mobile power supply, power battery, etc.).   Technical parameters Power supply 220V50Hz 30W Air source 0.4-0.8MPa Applicable battery type Polymer battery Max. tab width 194mm Min. gap of tab 10mm The tab retains the shortest length 5mm Cell length 30-200mm Cell width 30-300mm Cell thickness 2-12mm Weight 10kg Dimension 300*300*210mm Cutting tab’s thickness Al, Ni: max. 0.6mm nickel plated copper: 0.4mm
